SAND CREEK BRIDGE REPLACEMENT II

Services

  • Engineering & Construction
  • Project Management

Customer

Devon Energy

Project Date

2012

Location

NE Alberta

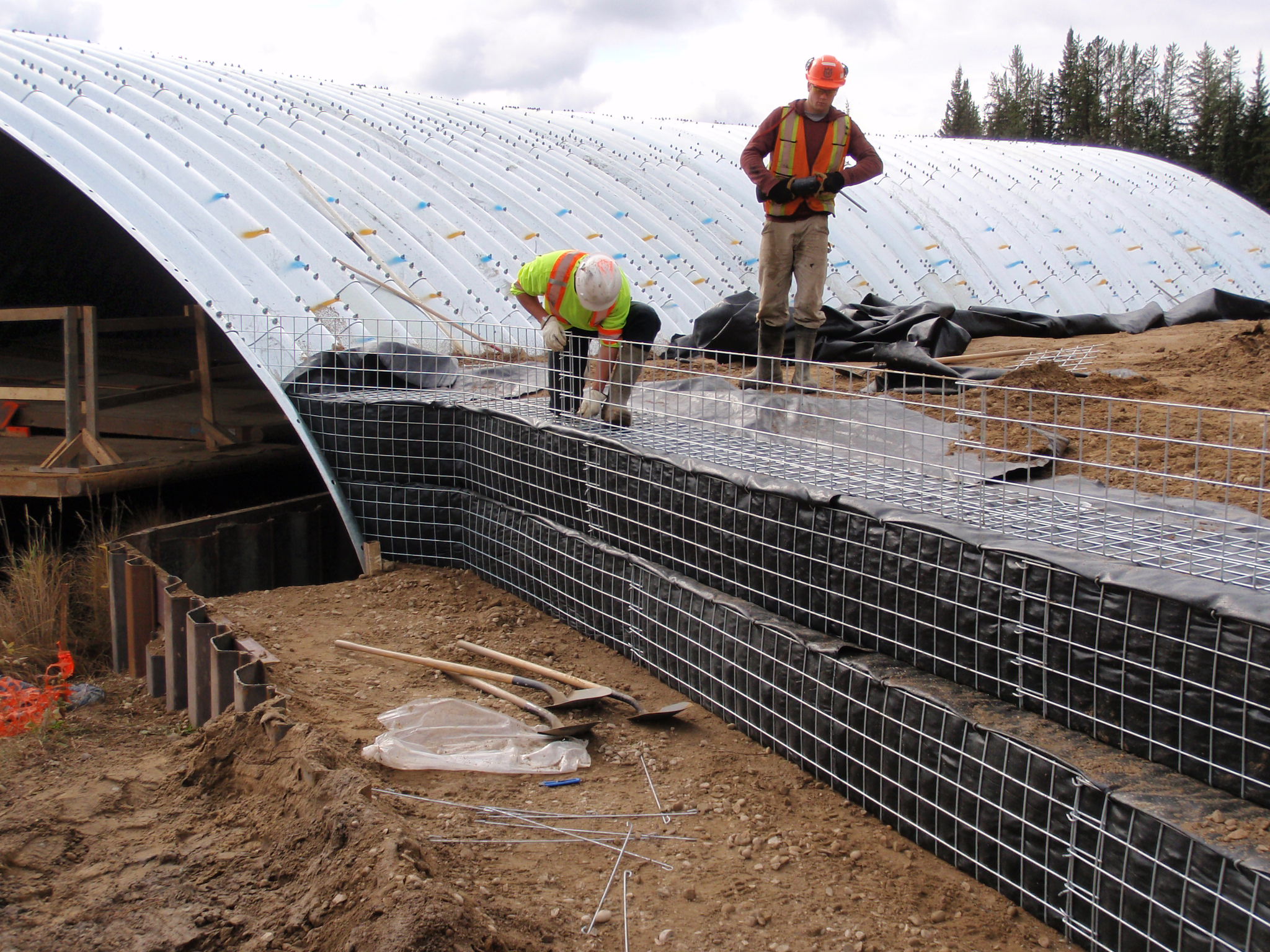

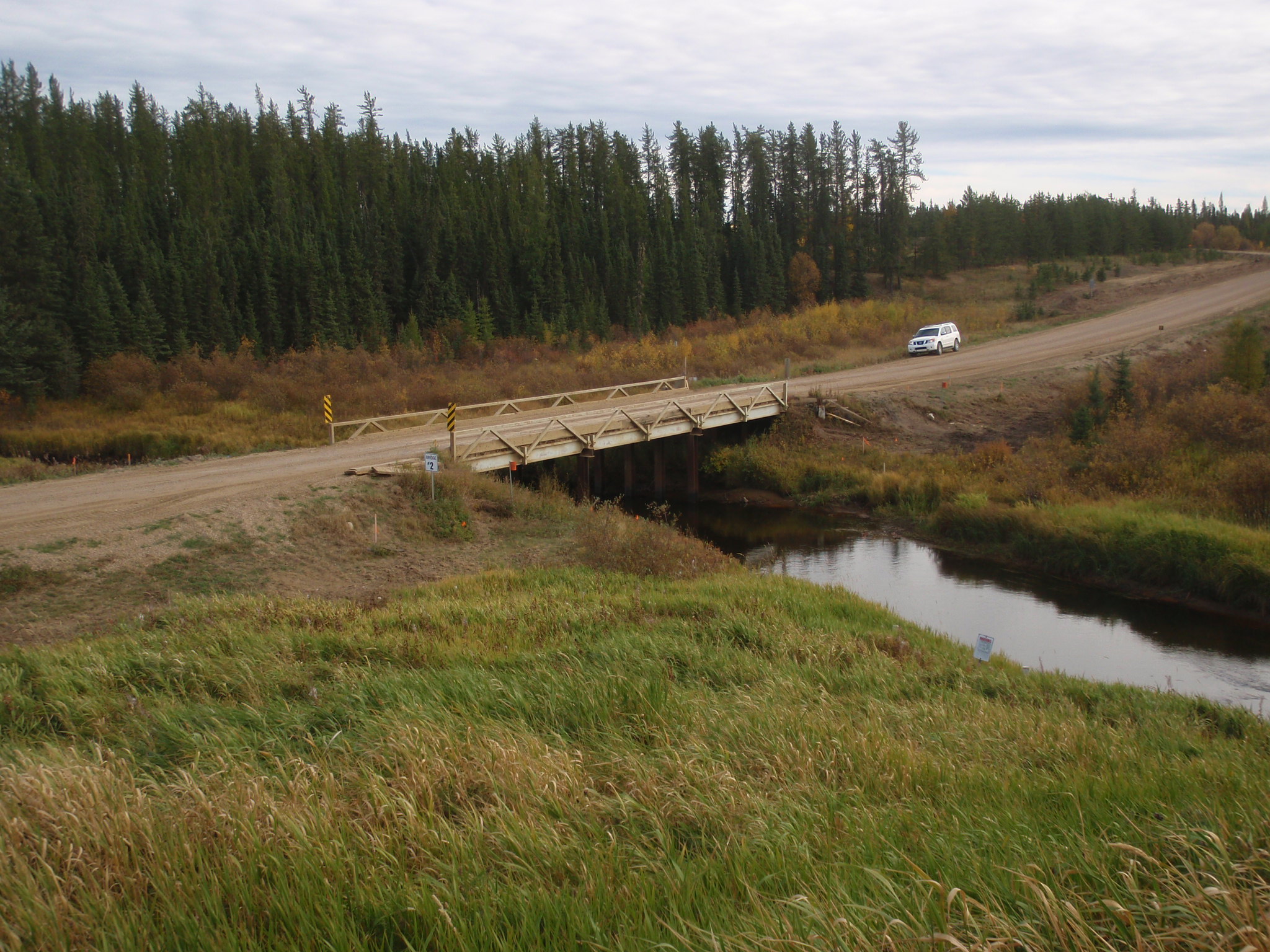

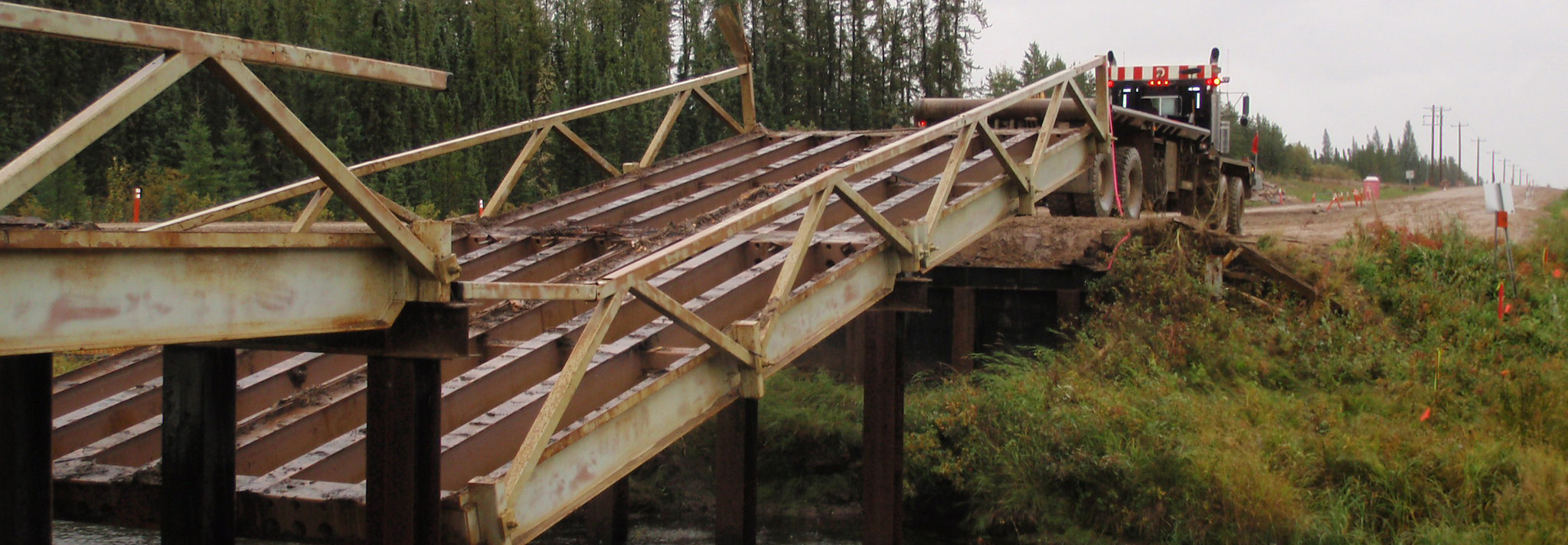

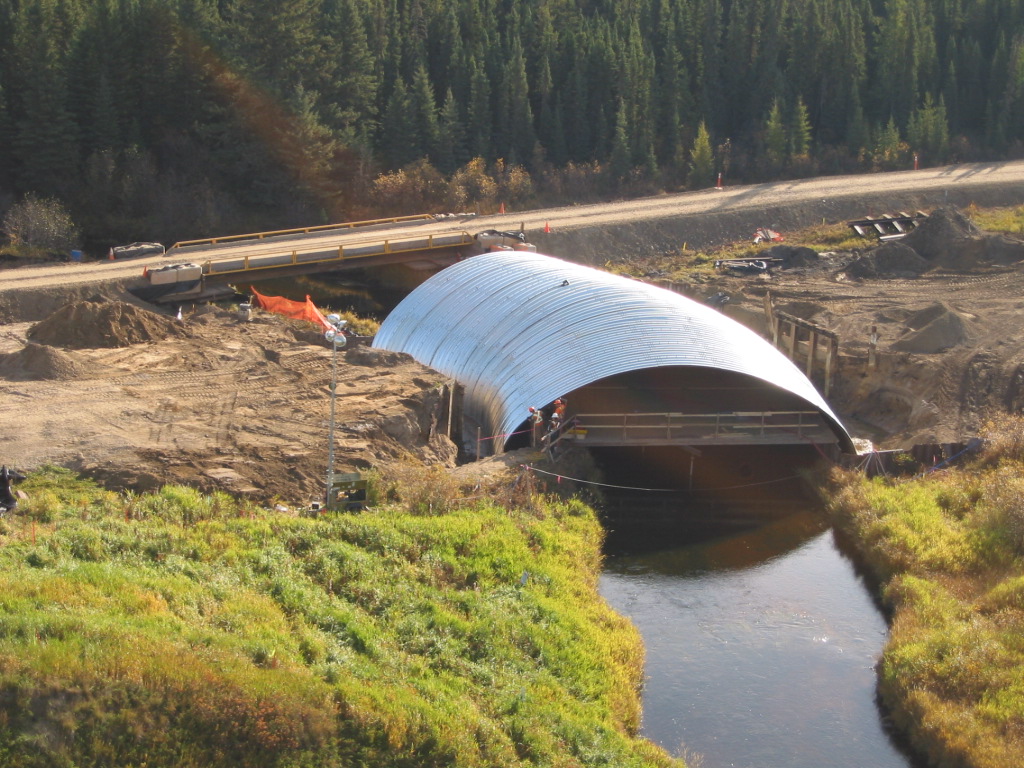

Landmark was retained to design and build a replacement crossing over the Sand Creek in Conklin, Alberta. A GRS supported arch was designed to replace the existing single lane bridge constructed 40 years earlier. The arch was chosen as it allowed the new road to be double-laned without significantly increasing the cost of the project.

Landmark’s project highlights include:

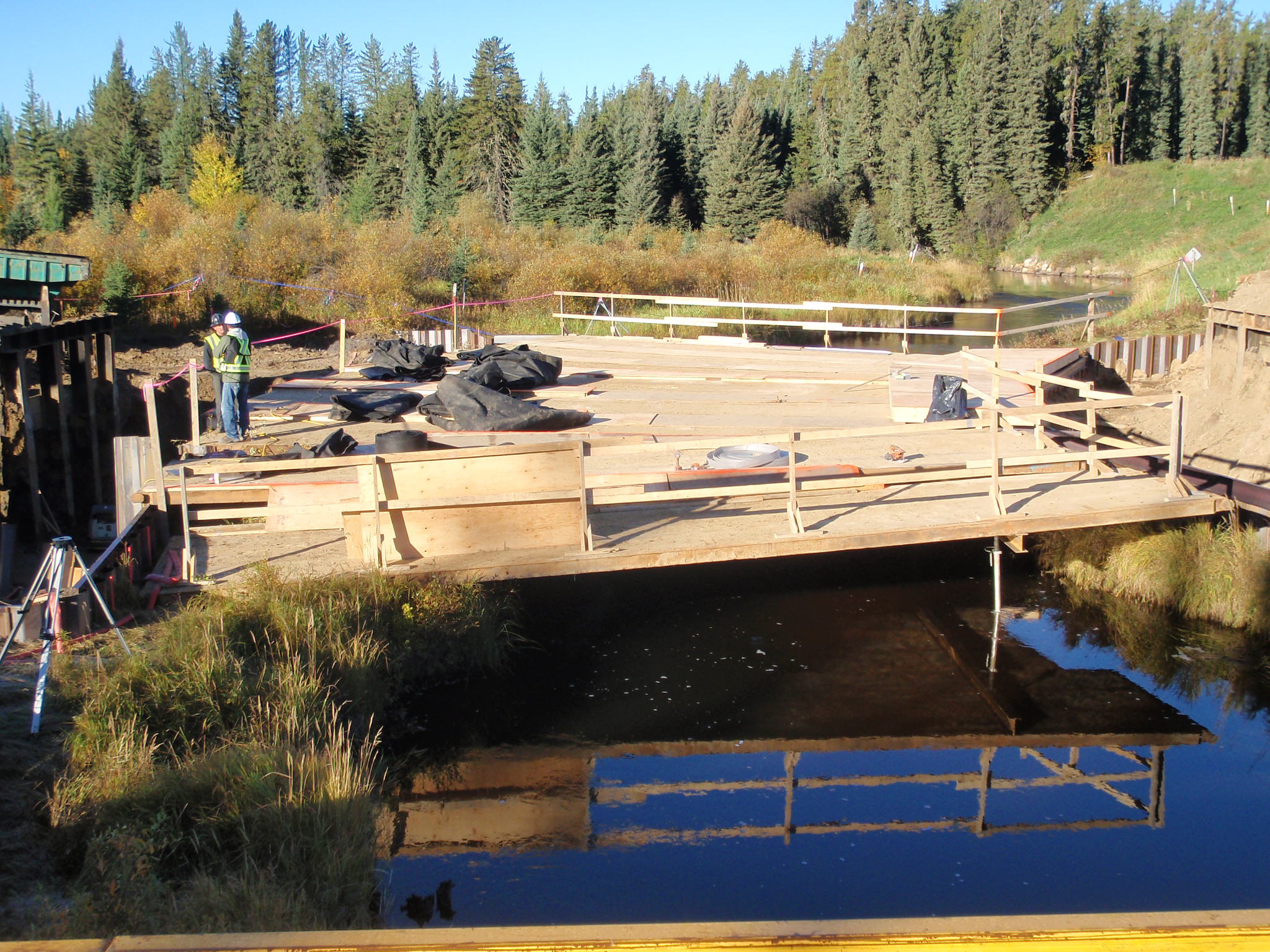

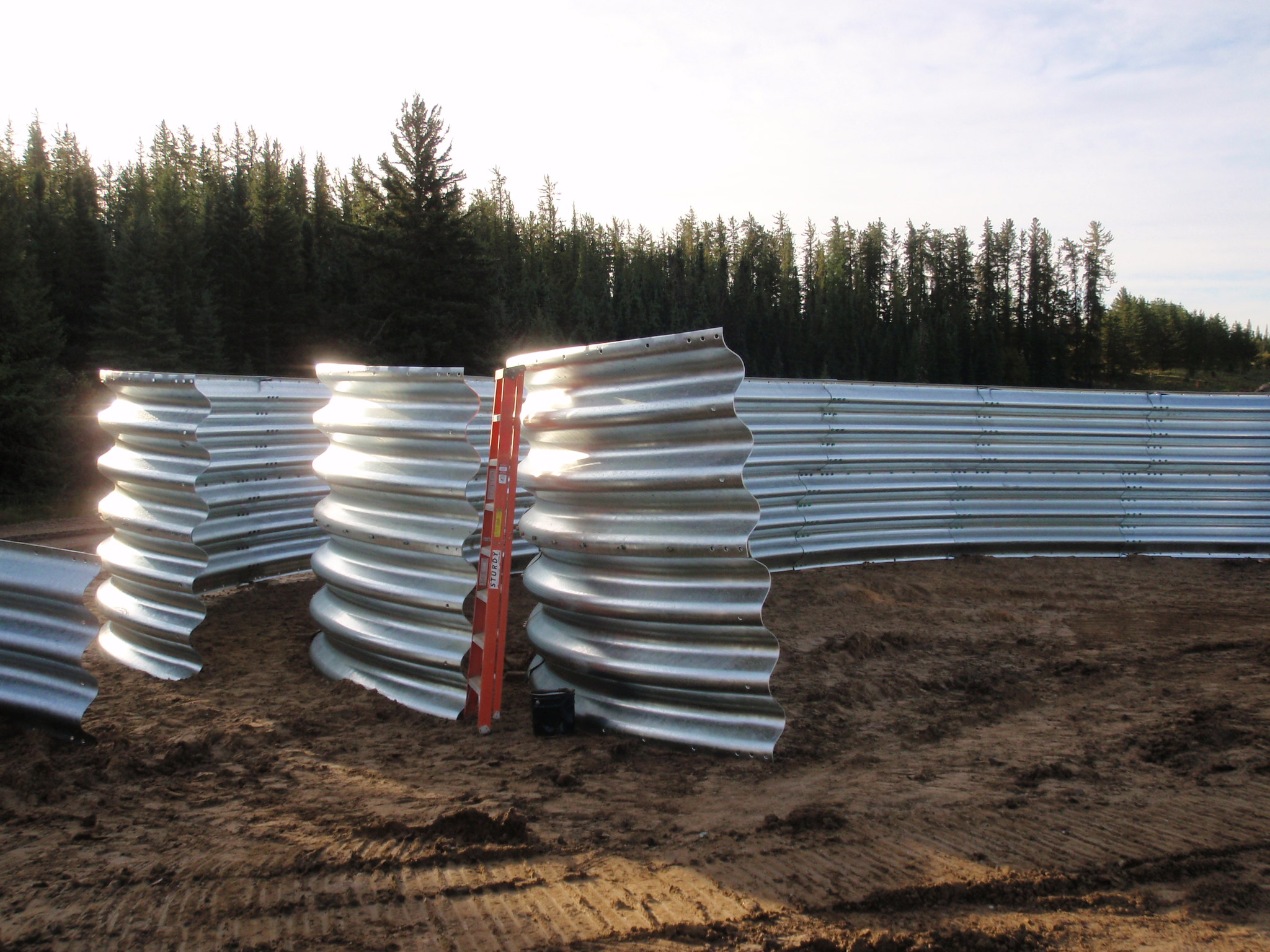

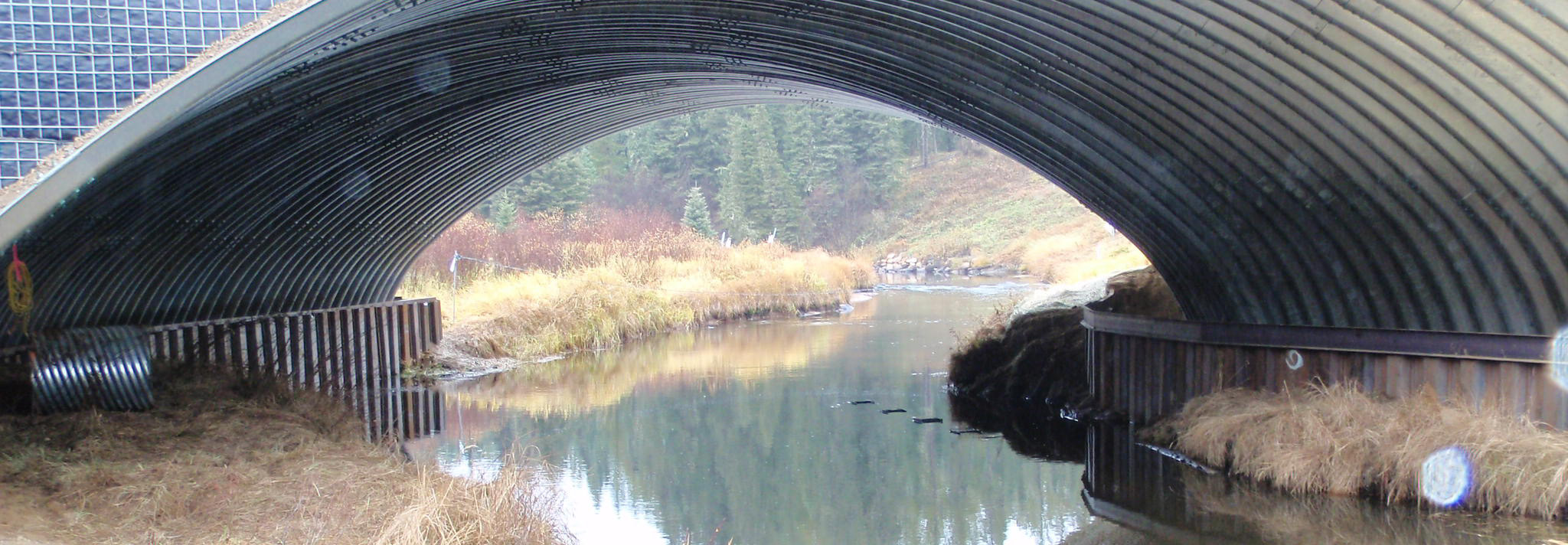

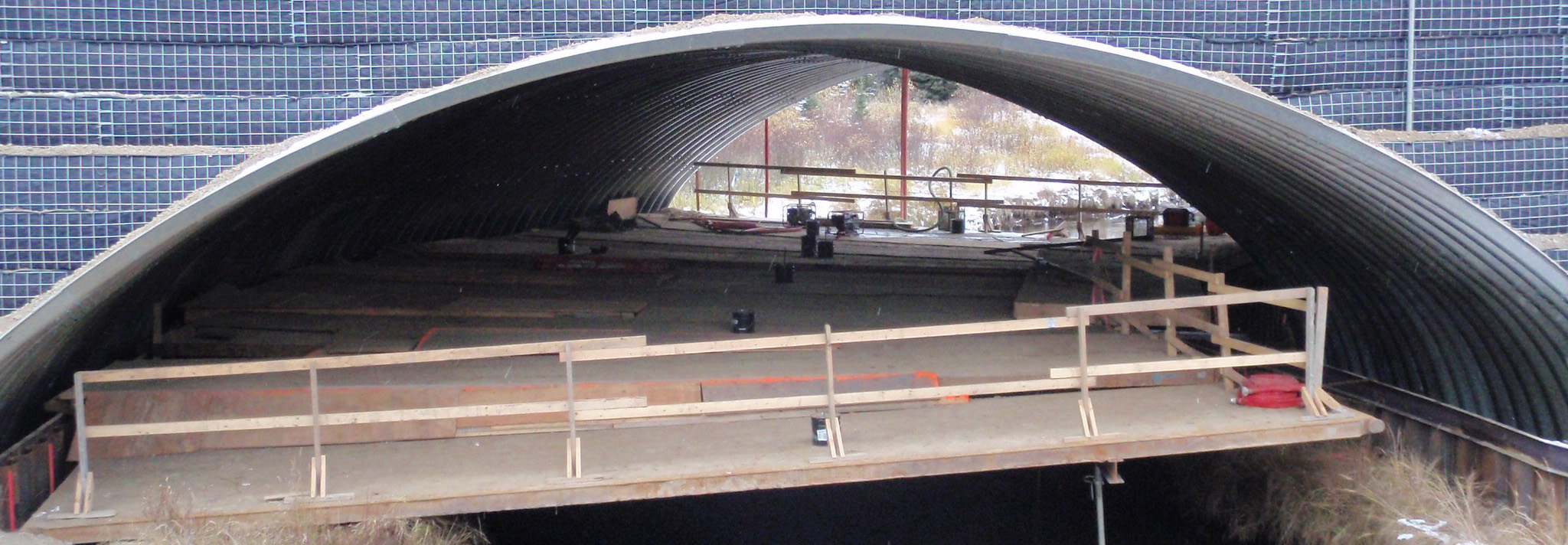

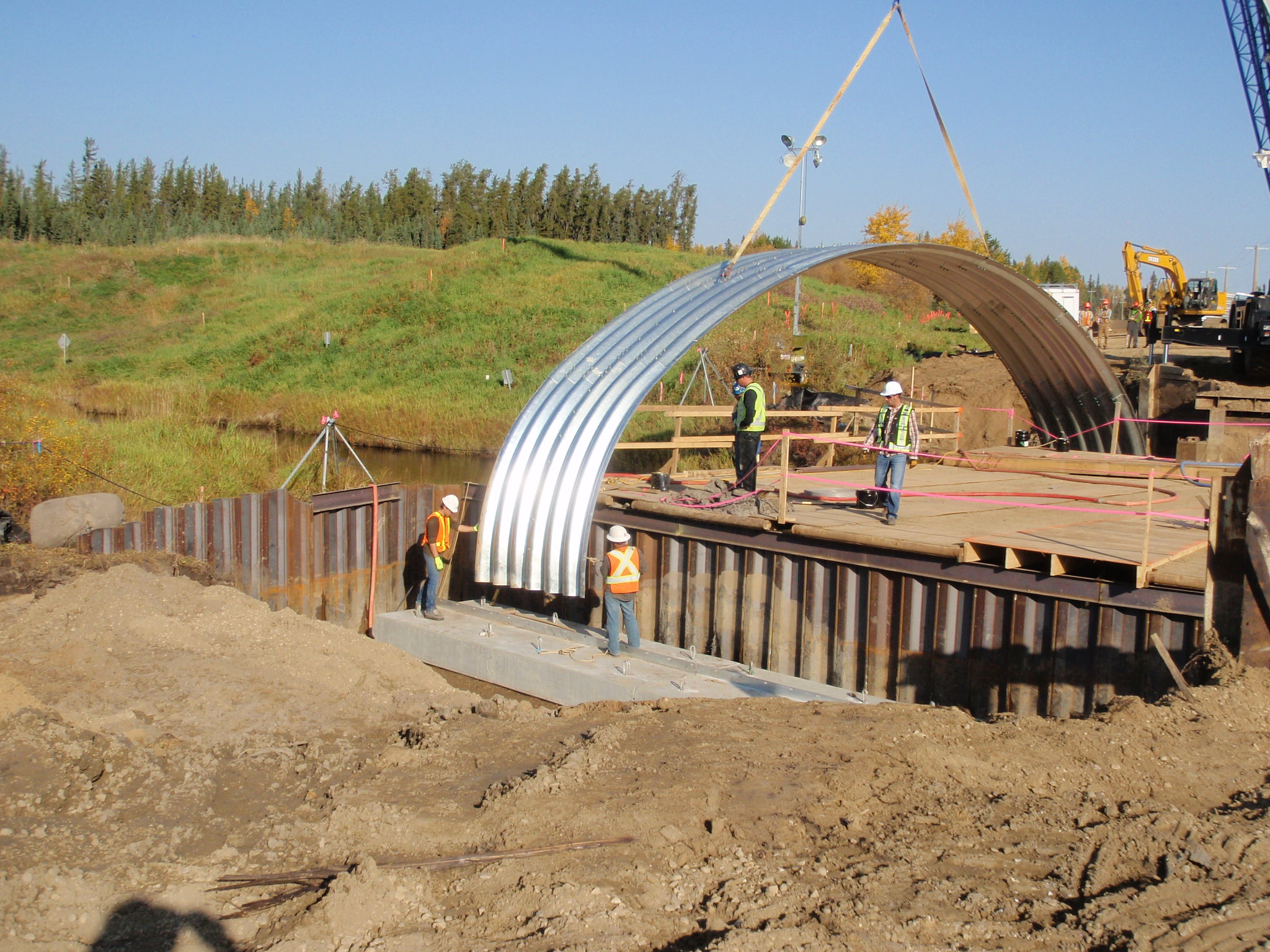

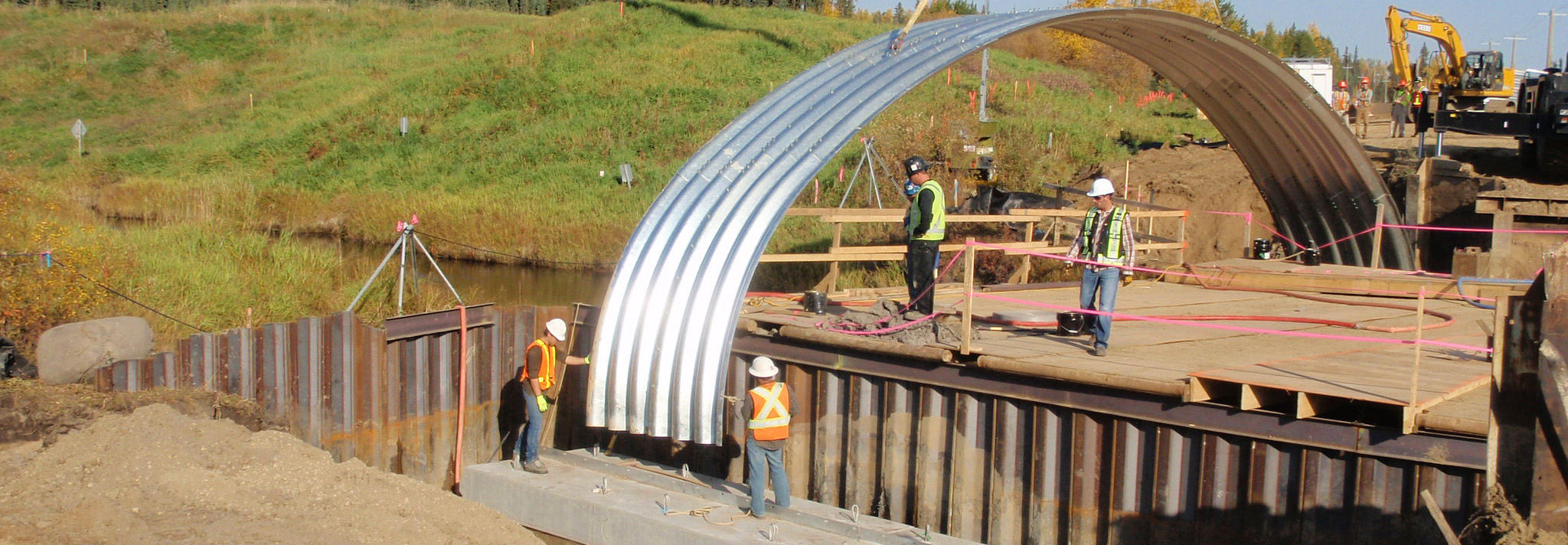

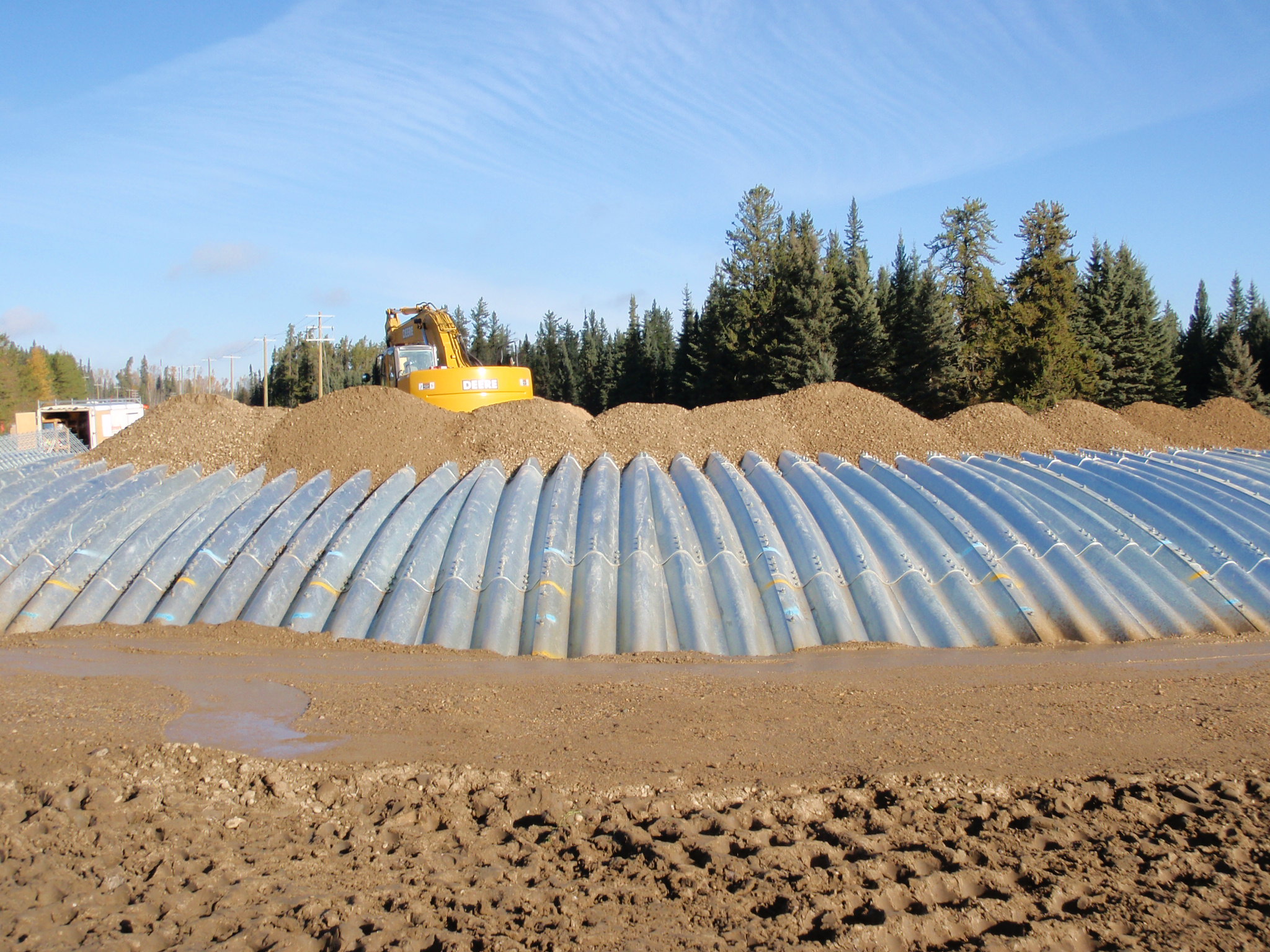

  • Installing a 16 meter span arch with a 36 degree curve over a flowing creek without dewatering,

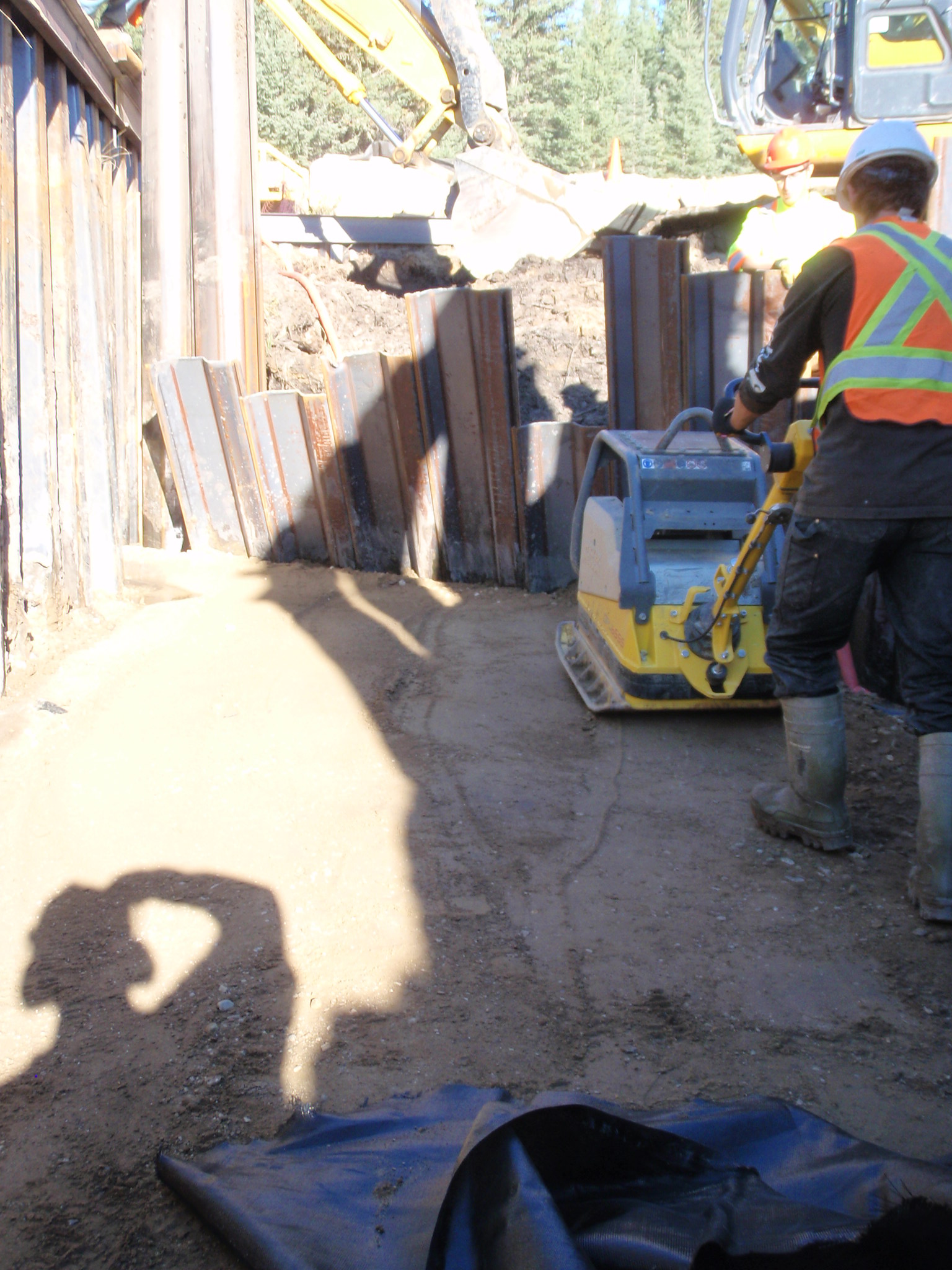

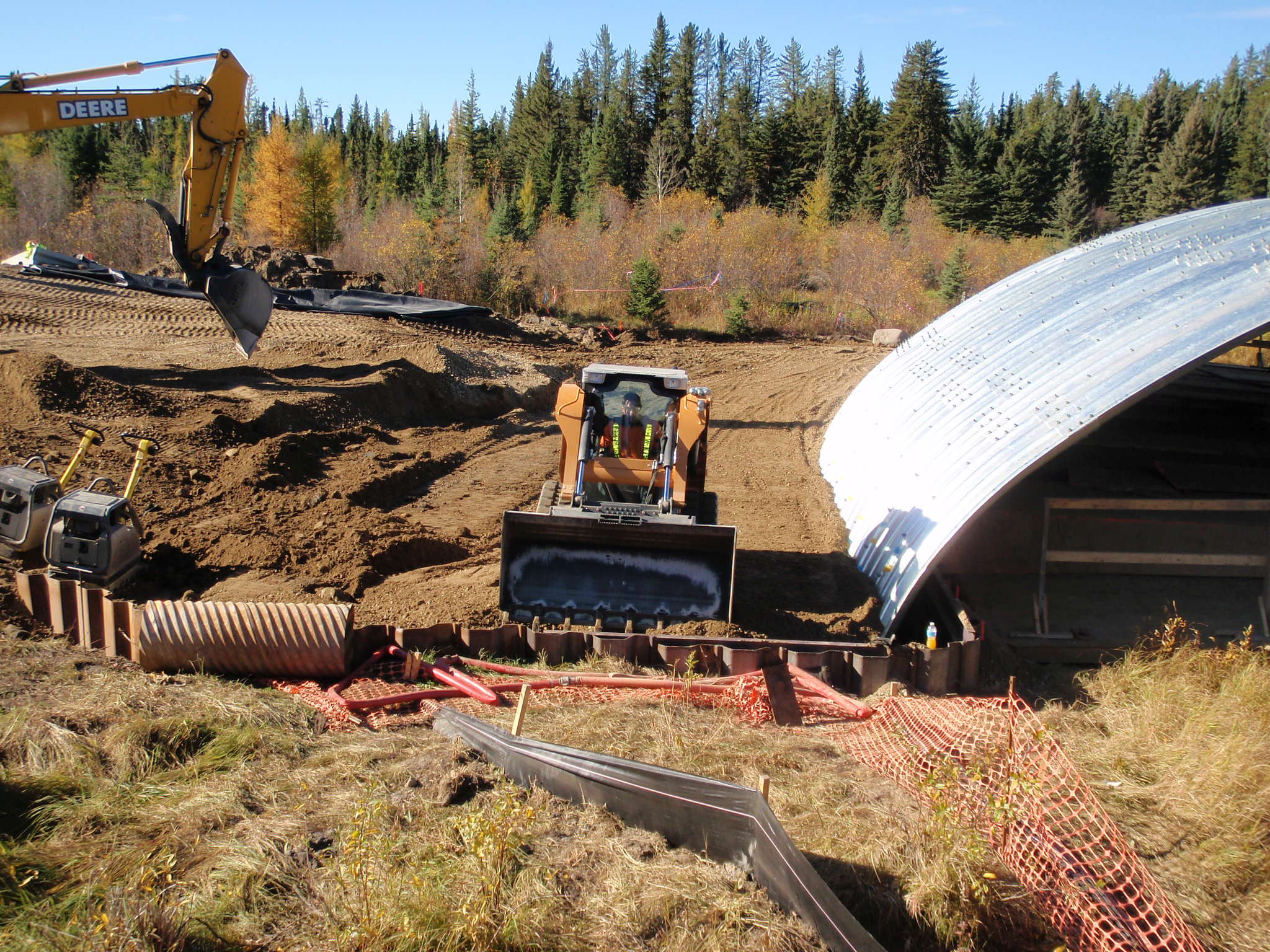

  • Using local in-situ material for backfill, greatly reducing overall cost by eliminating expensive import of aggregate,
  • Allowing 24-7 traffic for the duration of the project.

Another successful project done in collaboration with Terratech Consulting Ltd.
